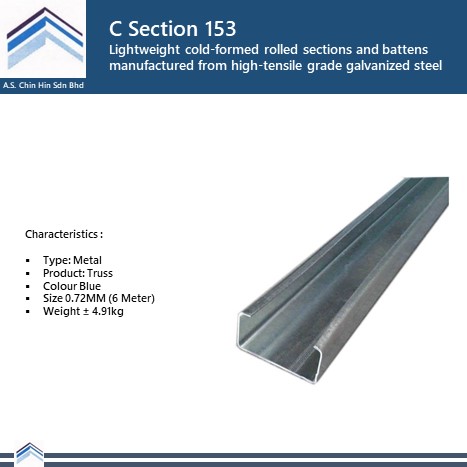

Description
Type : Metal
Product : Truss
Colour : Blue
Size : 0.72MM (6 Meter)
Weight : ± 4.91kg
Packing : 100Pcs/Bundle
Min Order Per : 1 Pcs
Introduction
BW C-SECTION AND BATTENÂ are lightweight cold-formed rolled sections and battens manufactured from high-tensile grade galvanized steel. It provides builders with a reliable roof truss structure, wall cladding and structural framing support for major types of buildings within the residential, industrial and commercial segments. Our sections and battens are lightweight and easy to handle requiring no heavy equipment during installation making it an economical and high quality alternative to conventional wood framing materials.
BW C-SECTION AND BATTENÂ is offered with a aluminium zinc-coated protection surface and these products can be custom designed to form an improved configuration that delivers superior strength, stiffness and increased load capacity significant for cost economies in both design and installation.
BW C-SECTIONÂ is engineered to be perfectly compatible with one another for box-up applications for superior strength enhanced and wider spans. Our products are produced in compliance to international standards to enable dimensional precision and consistent quality as a wholesome solution to technical requirements and commercial cost savings.
Specification & Technical info
| MATERIAL SPECIFICATIONS | Hot-dipped zinc / aluminium alloy coated / galvanized iron steel, high-tensile steel with yield strength of 550 Mpa complying with AS 1397 / MS 1196 / JIS G3302 | ||||||||||
| FIRE RATING | Class “O” fire rating according to BS 476 : Part 6 : 1989 “Method of Test for Fire Propagation For Products” | ||||||||||
| SIRIM FIRE TEST | BS 476 : Part 6 : 1989 : Method of Test for Fire Propagation for Prodcuts. | ||||||||||
| PRODUCT TOLERANCES | Thickness: ±0.03mm, Length: ±5mm, Web (Dim. H): ±3mm, Flange (Dim. B): ±2mm | ||||||||||
