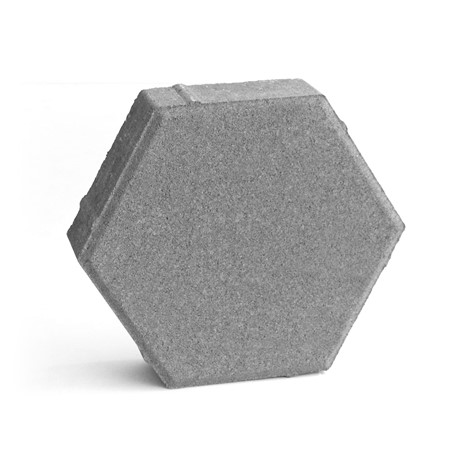

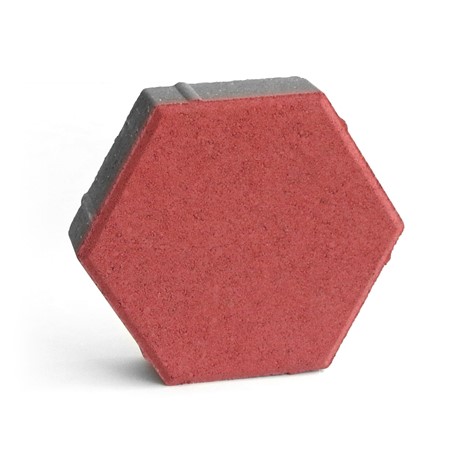

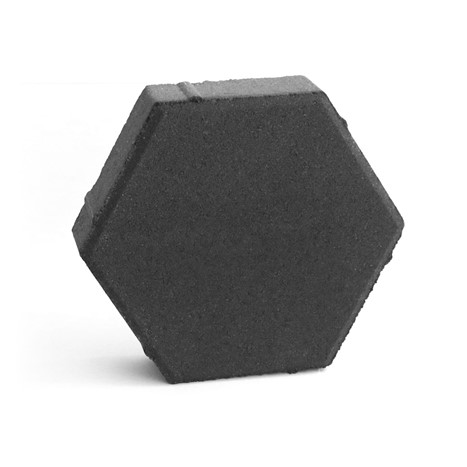

Type : Classic
Product : Interlocking Concrete Pavers
Colour : Black, Grey, Red

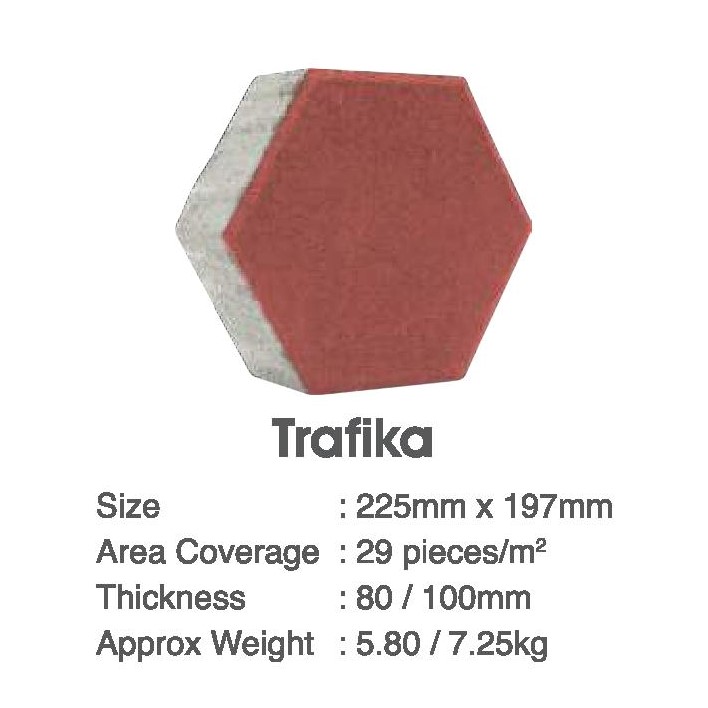

Size : 225MM(L) X 197MM(W) X 80MM(H)
Weight : ± 5.80kg
Packing : 322Pcs/Pallet
Min Order Per : 1 Pcs
Area Coverage : 29 Pcs/M²
Technical Specification

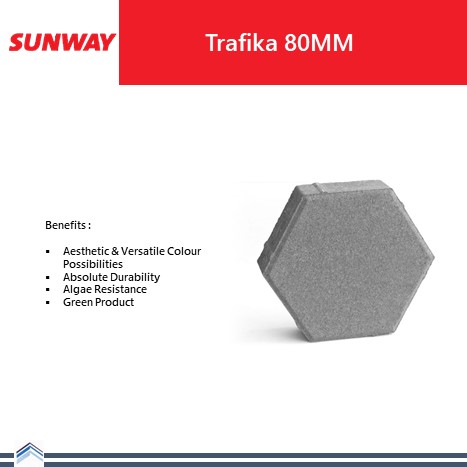

Malaysia’s 1st Algae Resistance Interlocking Concrete Pavers (ICP)
Interlocking Concrete Pavers (ICP) by Sunway Paving Solutions Sdn Bhd (SPS) were developed to ensure the surfaces of our ICPs are free from algae growth, as it is commonly happened on almost all other places. Our ICPs are algae resistance up to 80%, where our R&D deparment has undergone many research over the years and we are proud to say that we are Malaysia’s 1st Algae Resistance Interlocking Concrete Pavers since 2013, to have such properties in all of our product range except for Nuepave.
Â
Specification
| Thickness | Strength | Application | Tolerance | ||||||||||||

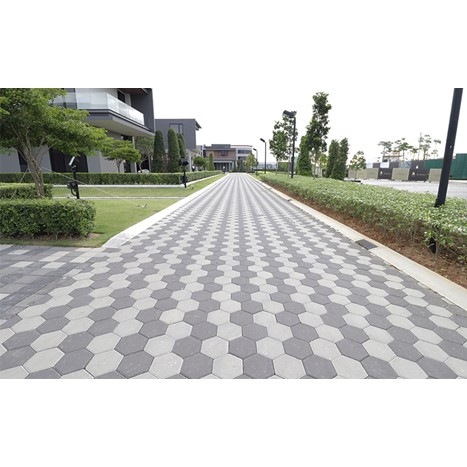

| 60mm | 30MPa | Pedestrian traffic ie. Footpath, Bicycle Track, Jogging Track, Park & Garden Landscape, Pool Deck, Patio etc | |||||||||||||
| Z60mm | 45MPa | Occasional vehicular traffic ie. Boulevard, Assembly area, Plaza, Buggy Track etc | Thickness | ||||||||||||

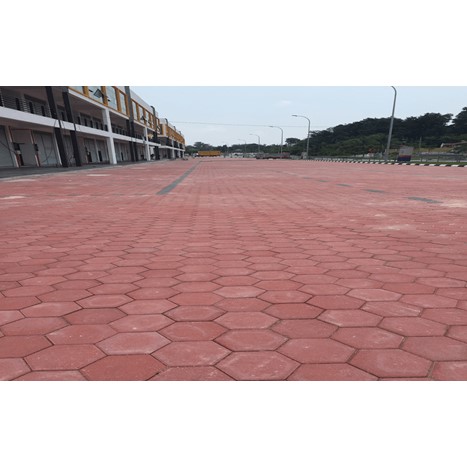

| 80mm | 45MPa | Vehicular Traffic ie. Driveway, Drop-off area, Cul-de-Sac, Warehouse, Industrial Area, Temporary Access, Roundabout, Junction, Backlane, Feeder Road, Internal Road etc | |||||||||||||
| ±3mm | |||||||||||||||
| Dimension | |||||||||||||||
| ±2mm | |||||||||||||||
| 100mm | 45MPa | Heavy-Duty Traffic ie, Inland port, maritime port etc | |||||||||||||
BS EN 1338 : 2003 (Specification for Concrete Paving Blocks)
MS 1380 : 1995 (Specification for Precast Concrete Paving Blocks)
BS 6717 : 1993 (Specification for Precast Concrete Paving Blocks)
Interlocking Concrete Pavers (ICP) Standard
| STANDARD | |||||||||||
| MS 1380 : 1995 | BS EN 1338 : 2003 | BS 6717:1993 | |||||||||
| Use in | Malaysia only | International | International, (superseded by BS EN 1338:2003, but still accepted in Singapore) | ||||||||
| Conformity | |||||||||||
| Physical Properties | Length ± 2mm | Length ± 2mm | Length ± 2mm | ||||||||
| Width ± 2mm | Width ± 2mm | Width ± 2mm | |||||||||
| Height ± 3mm | Height ± 3mm | Height ± 3mm | |||||||||
| Compressive Strength | > 45MPa | N/A | > 49 Mpa | ||||||||
| Abrasion | ≥ 1.5 ᵃ | ≤ 23mmᵇ | N/A | ||||||||
| ≤ 20,000mm³ | |||||||||||
| 5000mm²˒ᶜ | |||||||||||
| Water Absorption | N/A | ≤ 6% | N/A | ||||||||
| Tensile Splitting Strength | N/A | >3.6MPa (Failure load >250N/mm) | N/A | ||||||||
| Slip / Skid Resistance | N/A | Minimum value Í© | N/A | ||||||||
Note :
MPa = MegalPascal (N/mm²)
- Abrasion Test using Drill method (Method no longer practical).
- Abrasion Test using Wide Wheel method (BS EN 1338:2003 Annex G). Conducted at SPS.
- Abrasion Test using Böhme Test (BS EN 1338:2003 Annex H). Conducted at SIRIM.
- Average of three (3) values. Higher value indicates better slip/skid resistance.
